Specifications
For additional information, please contact the sales department or one of our sales representatives.
For underpress operation w/Industry
Standard.

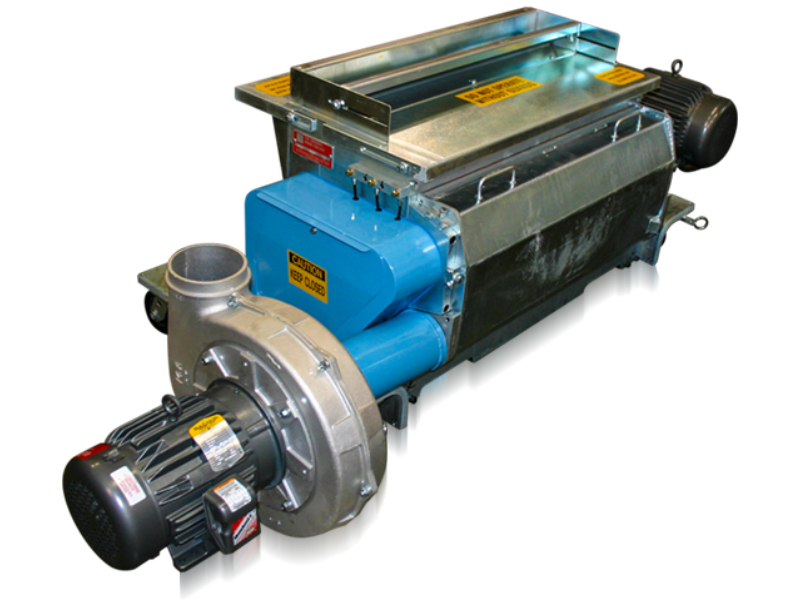

28 inch Horizontal Trim Presses.
• Incorporates patented Irwin R&D design
concepts.
• Powered and controlled from installed
circuitry in end user’s TP cabinet.
• 15, 20, 25, and 30-HP drive packages
available, depending upon resins and
output needs.
• Manual, semi-auto, and fully automatic
lubrication systems available.
• Electrical safety interlock with TP.
• Optional entry chute configuration and
TP-mounted guide rails to form an
integrated position control and guard
system.
• Easy access to screen.
• May be ordered as standard Left Hand or
optional Right Hand configuration to suit
plant layout.
• Combination 7.5 HP blower options available.
• Output to plant recycling estimated
(500+CFM).
• 5-HP blower standard.
• Output with 3/8 screen, foamed
plastics = 400-600 #/hr.
For underpress operation w/Industry Standard.
28 inch Horizontal Trim Presses.
• Incorporates patented Irwin R&D design concepts.
• Powered and controlled from installed circuitry in
end user’s TP cabinet.
• 15, 20, 25, and 30-HP drive packages available,
depending upon resins and output needs.
• Manual, semi-auto, and fully automatic lubrication
systems available.
• Electrical safety interlock with TP.
• Optional entry chute configuration and TP-mounted
guide rails to form an integrated position control
and guard system.
• Easy access to screen.
• May be ordered as standard Left Hand or optional
Right Hand configuration to suit plant layout.
• Combination 7.5 HP blower options available.
• Output to plant recycling estimated (500+CFM).
• 5-HP blower standard.
• Output with 3/8 screen, foamed
plastics = 400-600 #/hr.
