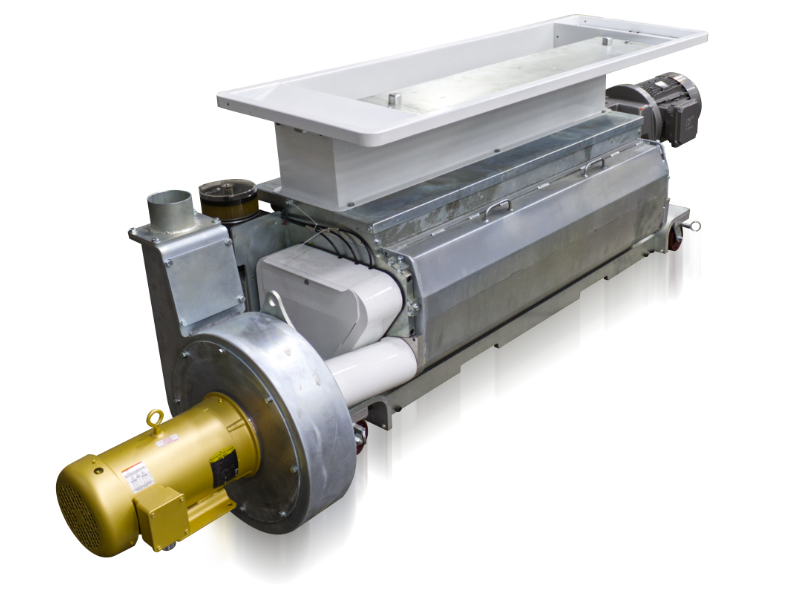

For underpress operation w/Industry
  Standard 44 and 50 inch Horizontal
  Trim Presses.
• Incorporates patented Irwin R&D
  design concepts.
• Powered and controlled from installed
  circuitry in end user’s TP cabinet.
• 15, 20, 25, and 30-HP drive packages
  available, depending upon resins and
  output needs.
• Manual, semi-auto, and fully automatic
  lubrication systems available.
• Electrical safety interlock with TP.
• Optional entry chute configuration
  and TP-mounted guide rails to form an
  integrated position control and guard
  system.

• Easy access to screen.
• May be ordered as standard Left
  Hand or optional Right Hand configuration
  to suit plant layout .
• Combination 7.5 HP blower options
  available.
• Output to plant recycling estimated
  (500+CFM).
• 5-HP blower standard.
• Output with 3/8 screen, foamed
  plastics = 600-800 #/hr.

Specifications

For underpress operation w/Industry Standard 44
  and 50 inch Horizontal Trim Presses.
• Incorporates patented Irwin R&D design concepts.
• Powered and controlled from installed circuitry
  in end user’s TP cabinet.
• 15, 20, 25, and 30-HP drive packages available,
  depending upon resins and output needs.
• Manual, semi-auto, and fully automatic lubrication
  systems available.
• Electrical safety interlock with TP.
• Optional entry chute configuration and TP-mounted
  guide rails to form an integrated position control
  and guard system.
• Easy access to screen
• May be ordered as standard Left Hand or optional
  Right Hand configuration to suit plant layout
• Combination 7.5 HP blower options available
• Output to plant recycling estimated (500+CFM)
• 5-HP blower standard.
• Output with 3/8 screen, foamed
  plastics = 600-800 #/hr
