Specifications
For additional information, please contact the sales department or one of our sales representatives.
Safety First…Protecting Your Workers
• Protected Feed Access on Sheet Throat
and Parts Hopper
• Protected and Interlocked Manual
Reverse Points for all drive motors
• Robust fail safe ‘Dog Bone’ Torque Arms
for Drive Trains
• All access points eclectically interlocked.
• Global ‘E-Stop’ protection.

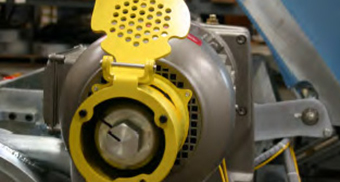

Safe manual Reverse Interlocked Access

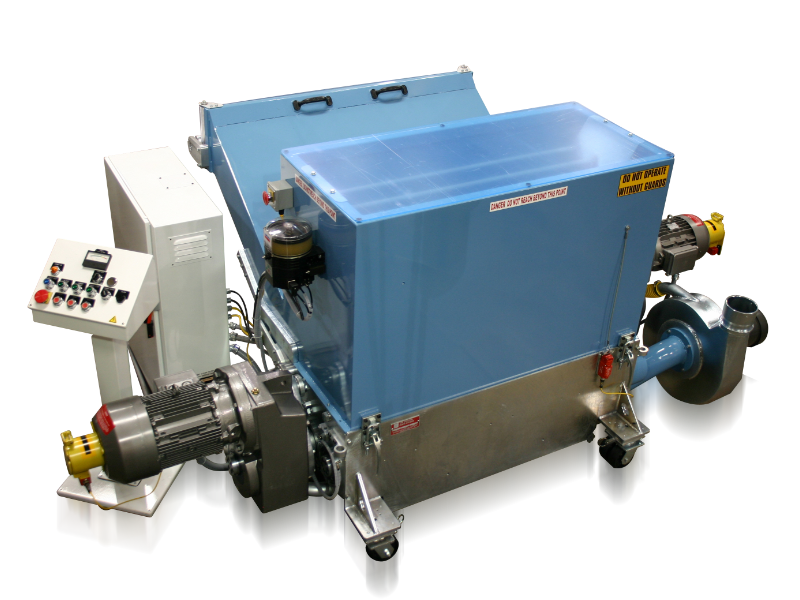

Specifications for CLS Chesaw
(Model 50 shown)
• Depth (Feed Direction) = 77 inches
(1956 mm)
• Width (Cross Sheet Direction) =138
inches (3505 mm)
• Height = 60 inches (1524 mm)
• Weight = 5320 lbs (2418 Kg)
• Power Requirement = 3 Phase 60 Hz
service…80 or 100 Amps for 25 or 30 Hp
main motor drive train (50 Hz available)

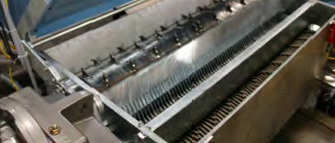

Tilt Top” Cutting Chamber Access
Safe manual Reverse Interlocked Access
Specifications for CLS Chesaw
(Model 50 shown)
• Depth (Feed Direction) = 77 inches (1956 mm)
• Width (Cross Sheet Direction) =138 inches
(3505 mm)
• Height = 60 inches (1524 mm)
• Weight = 5320 lbs (2418 Kg)
• Power Requirement = 3 Phase 60 Hz
service…80 or 100 Amps for 25 or 30 Hp
main motor drive train (50 Hz available)
Tilt Top” Cutting Chamber Access
Safety First…Protecting Your Workers
• Protected Feed Access on Sheet Throat and Parts
Hopper
• Protected and Interlocked Manual Reverse Points
for all drive motors
• Robust fail safe ‘Dog Bone’ Torque Arms for Drive
Trains
• All access points eclectically interlocked.
• Global ‘E-Stop’ protection.
