Specifications
For additional information, please contact the sales department or one of our sales representatives.
Safety First ••• Protecting Your Workers
• Protected Feed Access on Sheet Throat and Parts Hopper
• Protected and Interlocked Manual Reverse Points for all drive motors
• Robust fail safe 'Dog Bone'Torque Arms for Drive Trains
• Two-Corner 'E-Stop' protection.
Reliability means improved Bottom Line Profit
• Robust Design for a Long Life.
• Aggressive Cutting Knives
• Self protecting 'Anti-Jamming'
• Overload / Reversing Feed Drive Functions
• Nord/Siemens Helical Gearmotors
• Improved Flake Evacuation via Blower
Air Assist and Recirculation
• Auto Lube Unit insures Trouble
Free Bearing longevity
• High Quality Siemens Micromaster Vector Drive and Inverter Duty Feed Motor.
User Friendly for everyone
• Remote Operators Console with speed override/control.
• Multiple Access Material Feed
(plus slaved conveyor feed ability)
• Easy Access for Clean Out of Knives.
• 'Anti Tear' In-Feed Rollers for Unmonitored Sheet Reduction
• Two way 'Adjustable Scraper' Plates Enhances Cutting Efficiency
• Final Sizing screen has Adjustable Mounting insuring Maximum Flake Output
• Sound Suppresor 7.5 HP Blower.

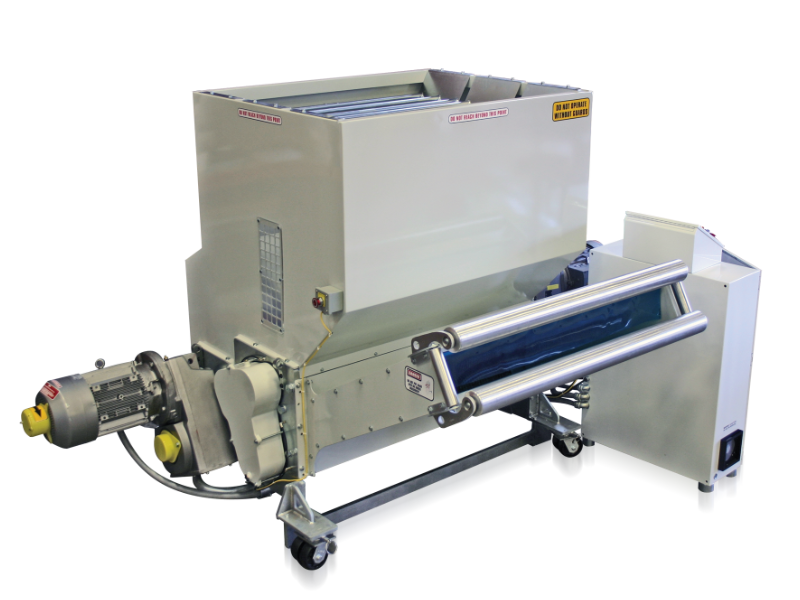

Specifications for CLS Chesaw (Model SO shown)
• Depth (Feed Direction)= 90 inches
• Width (Cross Sheet Direction) =140 inches
• Height= 78 inches
•Weight= 7500 lbs
• Power Requirement= 3 Phase 60 Hz service 125 Amps for 30 Hp main motor drive train (SO Hz available)
