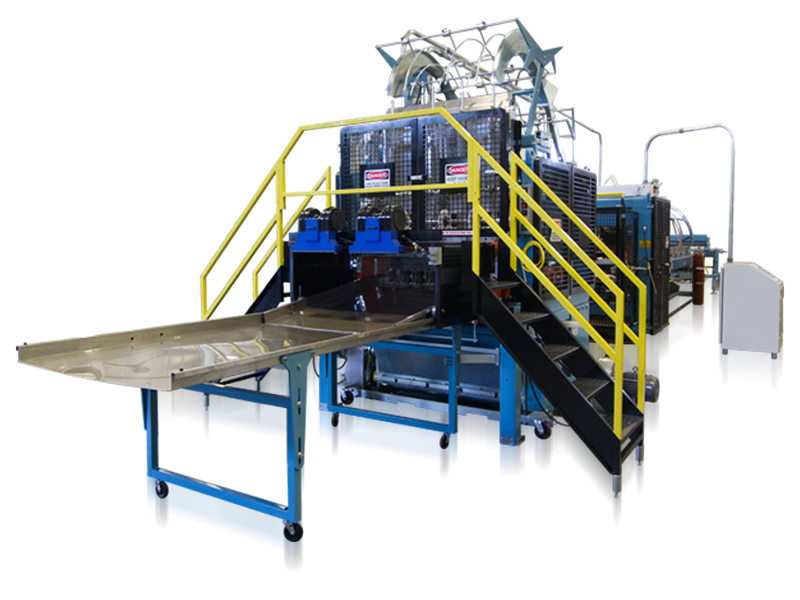

The Model 44 Thermoformer's key to success is its flexibility and adaptability. It provides exceptional performance throughout a range of sheet types, including TFPP, PP, PET, CPET, HIPS, and polystyrene foam. The optional Mini-Magnum configuration allows a 6" product depth making it an excellent candidate for cup production.
The Model 44 heat tunnel is available in lengths ranging from 200" to 220" with standard 5/8" tubular heaters as well as the optional combinations of tubular and quartz, or all quartz heating elements. The heat tunnel control is via S7-1500T Siemens control system that provides precise PID control.
Material Index
Max. Chain Speed
200"/sec (5080mm)
Sheet Width:
Max 46" (1168mm) Min 26" (660mm)
Length
200"-220" (5080-5588mm)
Heating Element
Standard 5/8" Cal Rod Optional: Quartz / Quartz
Temperature Control
Standard Siemens S7-1500T Heat Control
Sheet Width
Max 46" (1166mm) Min 26" (660mm)
Max. Mold Size
44" Wide (1118mm), 40" Long (1016mm)
Depth of Draw
2.50" (64mm) 2.50" (64mm)
Press Rating
60 Tons
Shut Height
Standard 6" (152mm)
Optional: Up to 10" (254mm) Mini-Mag: 25" (635mm)
Platen Travel
3.78" (96mm) Mini-Mag 6.00" (152.4mm)
Electrical Service
480/380 V 50/60 HZ
Former
Heat Tunnel

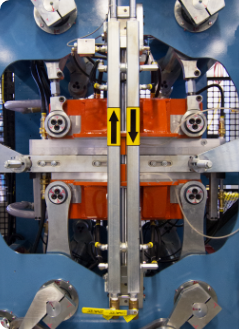

Thermoformer Specifications
Sheet Width
Max 46" Wide (1168mm), Min 26" (660mm)
Product Depth
Maximum 6" (152mm)
Treadle Adjust
Vertical: 6" (152mm), Horizontal: 7" (178mm)
Stroke
Maximum: 8" (203.2mm), Min: 5" (127mm)
Platen Opening
Index Direction: 14" - 20” (356mm-508mm)
Across Sheet: 51" (1295mm)
Auto Thread
Optional
Dry Cyrcle Speed
1-145 cpm
Servo Ejector
Optional

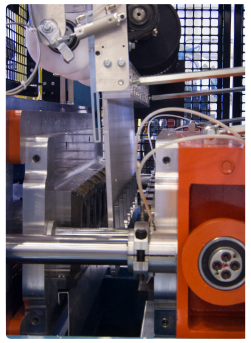

Trim Press Specifications
