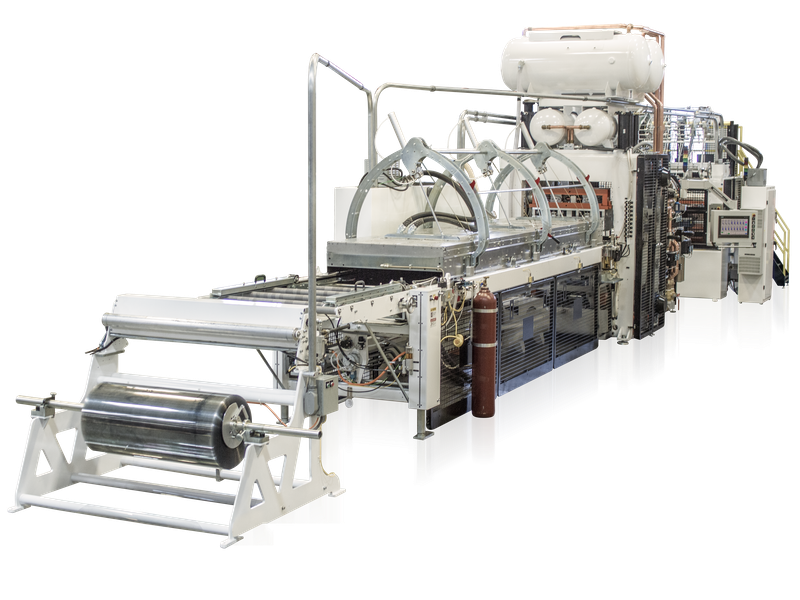

          The Model 45 is an industry innovation and technology for solid sheet thermoforming. It Introduces the Computer Adjustable Shut Height System (CASH) which uses a measuring system to check loads on the frame and able to set tonnage limits to match and not exceed the machine specifications. The new CASH lets the tool shut heights to be adjusted with up to 3/8" travel.

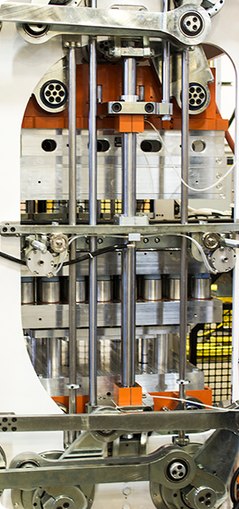

          New "Saddle Style" Platen System with an innovative design to ensure flatness. This modular design allows the platen to be easily removed from the former. It is easily adapted to work with any tooling at 125 tons of forming pressure when used with the new CASH system. An advanced air system, with the latest technology available.
Material Index
Max. Chain Speed
200"/sec.(5080mm)
Sheet Width:
Max 52.5" (1334mm) Min 30" (762mm)
Length
160"-220" (4064-5334mm)
Heating Element
Standard: Cal Rod Optional: Quartz
Temperature Control
Standard dual control with slaved zones
Option PID Control: +2 at 600°F +1 at 316° C

Sheet Width
Maximum 52" Wide (1321mm),
Minimum 30" (762mm)
Max. Mold Size
50" Wide (1270mm), 50" Long (1270mm)
Depth of Draw
Standard: 2.50" (64mm) Optional: 3.5" (83mm)
Press Rating
60 Tons
Shut Height
Standard: 10" (254mm)
Optional: Up to 14" (356mm)
Platen Travel
3.78" (96mm) Standard
5.5" (140mm) Optional




Former
Heat Tunnel
Thermoformer Specifications
Sheet Width
Max 52" Wide (1320.8mm), Min 30" (762mm)
Product Depth
2.50" (63.5mm)
Optional: 3.5" (88.9mm)
Treadle Adjust
Vertical: 5" (127mm), Horizontal: 7" (178mm)
Stroke
6" (152.4mm)
Optional: Minimum 5" (127mm), Maximum 8" (203mm)
Platen Opening
Index Direction: 14" to 20” (355.6mm) (508mm)
Across Sheet: 56" (1422.4mm)
Maximum Cutting Force
20 Tons

Dry Cyrcle Speed
1-220 cpm
Servo Ejector
Optional
Trim Press Specifications
