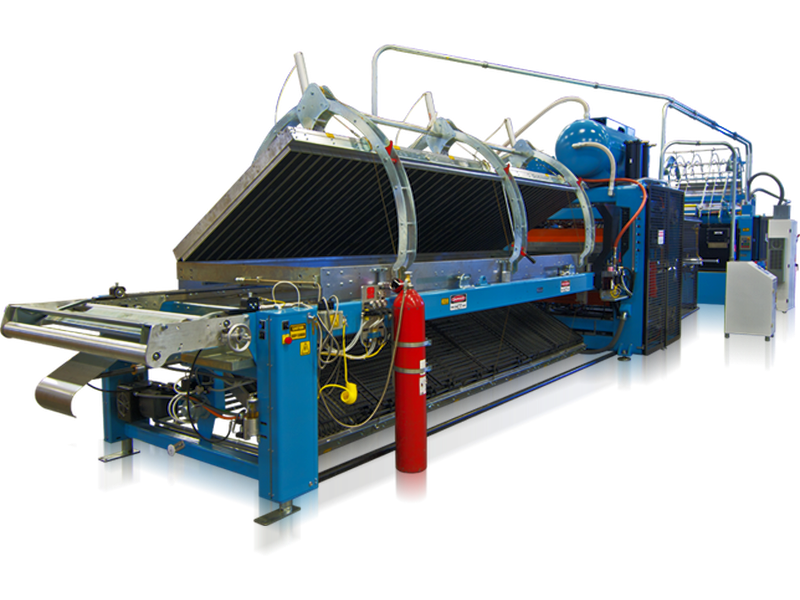

The Model 56 is an upgraded and expanded version of our Standard Model 50 Former. Several customers reached out to Irwin, requesting a machine that would offer increased production capabilities without sacrificing speed and forming quality.
The Model 56 was engineered in 2010, to provide customers with wider tooling/product options, significantly increasing their product count with every formed shot. Since its release in 2012, the Model 56 remains a very popular, versatile, high production machine.
Material Index
Max. Chain Speed
150"/sec (3810mm/sec)
Sheet Width:
Max 60" (1524mm) Min 30" (762mm)
Cut Off Knife
Optional (Entrance & Exit)
Length
200" (5080mm)
Heating Element
Standard 5/8" Cal Rod Optional: Quartz
Temperature Control
Standard Siemens S7-1500T Heat Control
Sheet Width
Max 60" (1524mm) Min 30" (762mm)
Max. Mold Size
56" Wide (1422mm), 60" Long (1524mm)
Depth of Draw
3 1/2" (90mm)
Press Rating
80 Tons
Shut Height
14" (356mm) Maximum
Platen Travel
6 1/2" (165mm) Maximum Top & Bottom
Electrical Service
480/380 V 50/60 HZ

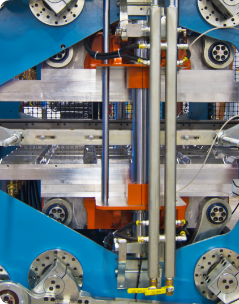

Former
Heat Tunnel
Thermoformer Specifications
Sheet Width
Maximum 60" Wide (1524mm)
Product Depth
Maximum 3 1/2" (90mm)
Stroke
Maximum: 6'' (152mm) Standard
Platen Opening
Index Direction: 14" - 20” (356mm-508mm)
Optional Across Sheet 64" (1626mm)
Maximum Cutting Force
39 Tons
Dry Cyrcle Speed
180 cpm
Servo Pick
Standard

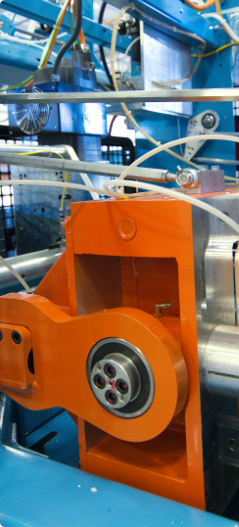

Trim Press Specifications
Counter Balance Platen Motion
Standard
Servo Canopy
Standard
Shut Height
6"(152.4mm) to 13" (330mm)
Platen Stroke
4"(101.6mm) to 10" (254mm)
Servo Ejector
Optional (Lineal Rack/Pinion)
Auto Thread
Standard
