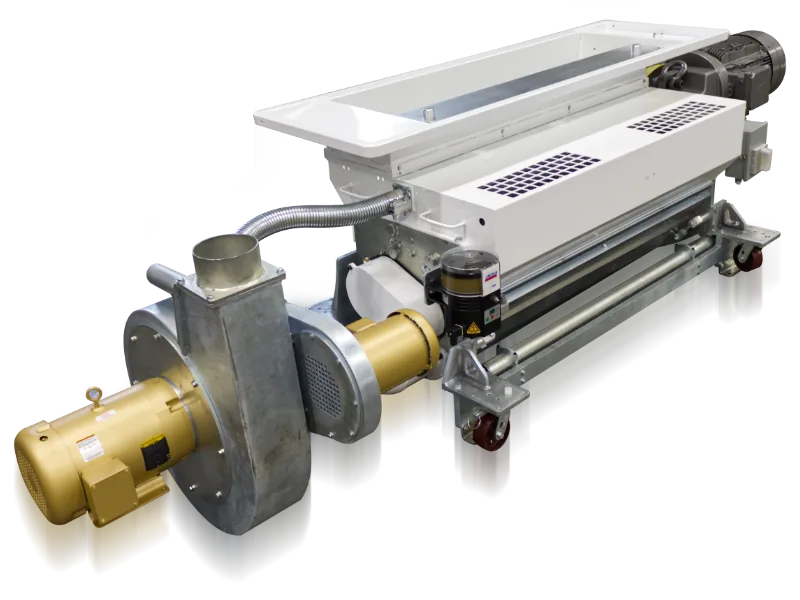

Irwin Granulator - Chesaw

• For underpress operation w/Industry Standard

  28, 44 and 50 inch Horizontal Trim Presses

• Incorporates patented Irwin R&D design concepts

• Powered and controlled from installed circuitry

  in end user’s TP cabinet

• 15, 20, 25, and 30-HP drive packages available,

  depending upon resins and output needs

• Manual, semi-auto, and fully automatic lubrication

  systems available

• Electrical safety interlock with TP

• Optional entry chute configuration and TP-mounted

  guide rails to form an integrated position control

  and guard system

• Easy access to screen



• May be ordered as standard Left Hand or

  optional Right Hand configuration to suit plant layout

• Combination 7.5 HP blower options available

• Output to plant recycling estimated (500+CFM)

• Optional air recirculation system to assist

  material evacuation with heavy resins

• Optional air recirculation system to assist

  light (foam) material internal flow for process


• 5-HP blower standard.

• Output with 3/8 screen,

  foamed plastics = 600-900 #/hr

• Output with 3/8 screen, solid

  plastics = 800-1400#/hr
