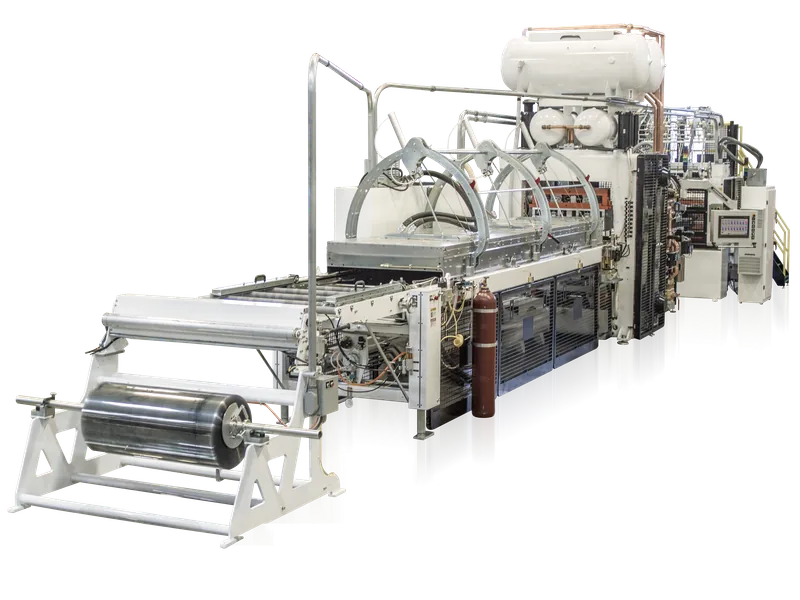

Irwin Thermoformer Model 50

Material

Index

Heat

Tunnel

Former

Chain Rail Type

50 Chain/Stainless body

Chain Rail Preheater

Optional

Sheet Stretch

In Forming Area

.5" for a 45 Inch Tool (1.5 for a 44 Tool)

(43.5 Tool and Smaller 2.0")

*Pneumatic operated to allow for sheet to heat up and

stretch, therefore allowing the chain rails to feed sheet

without stalling the feed drive while running.

Web Advance

140" Per Second

Length

Heating Elements

Electrical Service

Temperature Control

220"

Quartz, Cal Rod optional

400 AMPS - 480 VAC

Standard Siemens Simotion CPU-425-2(3) Heat Control

Max Sheet Width

Max Sheet Gauge

Max Tool Size

Top Platen Travel

Bottom Platen Travel

Maximum Former Tonnage

Top Split

Bottom Split

Shut Height

Servo Adjustable

Shut Height

Dry Cycle Time

Vacuum Servo Valve

Platen Drive

Third Motion

Four Point Tonnage

Thermal Control

48"

.150

45" x 45"

6" Maximum or 8" optional

8" Maximum

125 TONS

12" Maximum of 15"

Maximum 18"

30"

Max Stroke 3/8"

58 cycles per minute

Optional

Separate Servo Drives

Optional

Control Monitored

Optional

Sheet Width

Product Depth

Treadle Adjust

Maximum Cutting Force

Stroke

Optional:

Platen Opening

Maximum Cutting Force

Dry Cyrcle Speed

Self Feed Treadle

Servo Ejector

Max 52" Wide (1320.8mm), Min 30" (762mm)

2.50" (63.5mm) Optional 3.5" (88.9mm)

Vertical: 5" (127mm), Horizontal: 7" (178mm)

27.5 Tons

6" (152.4mm)

Minimum 5" (127mm), Maximum 8" (203mm)

Index Direction: 14" to 20” (355.6mm) (508mm)

Across Sheet: 56" (1422.4mm)

20 Tons

1-220 cpm

Standard

Optional

©2019 Irwin Research & Development, Inc. Yakima, Washington, USA
